3"~48" U type butterfly valve for water and beverage manufacturer from China Hebei Hongbang Valve Co.,Ltd.

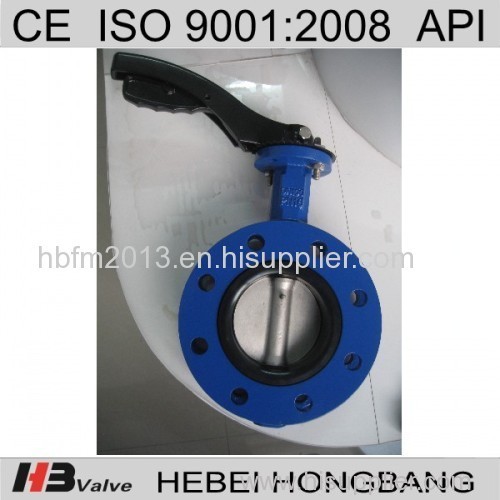

3"~48" U type butterfly valve for water and beverage

Price:	1.0~1000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land

Packing: Export wooden packaging

Power: Manual

Pressure: Low Pressure

Material: Casting

Media: Water

Color: Optional

Production Capacity: 10000pieces/month

Delivery Date: 30days

Standard or Nonstandard: Standard

Structure: Butterfly

Temperature of Media: Medium Temperature

Brand Name: HHV

butterfly valve :
1)DN40-600 PN10/16
2)Manufacturer, with many patents
3)High quality, long time usage
4)ISO9001:2008 an

Specifications

double flange butterfly valve
face to face according to ISO5752
vulcanized rubber liner prevent leakage
worm gear operation

Several years professional butterfly Valve manufacture directly suppling:

worm gear operated double flange butterfly valve dn200

Flange comply with:

DIN PN6/10/16,

ANSI CLASS 125/150,

JIS 10K,

BS10 TABLE "E"

Optional Materials:

Body: Cast Iron GG25, Ductile Iron GGG40, GGG50

Disc: Ductile Iron+Nickel painted,SS304/316,AL-BRONZE C954

Seat: NBR ( Buan-N), EPDM, VITON, PTFE

Shaft & Pin: SS410, SS416, SS304, SS316

Actuator: Lever,Worm Gear, Pneumatic and Electric Actuator

Product characters:
1. Rubber backed seat with stable valve torque.
2. Grooved sleeve design to achieve stable positioning.
3. Simple construction, small in size, Easy disassembling, installation and maintenance.
4. Minimized operating torque. Lever, gear, pneumatic and electric actuators can be chosen.
5. Special design, high flow rate and low flow resistance.
6. Suitable medium: water, sewage, sea water, air, steam, food, medicament, oils, acids, alkalis, salts etc. No leakage under the rated pressure.

7: Painting: expoxy Paint
