Double Door wafer swing check valve PN10/16 manufacturer from China Hebei Hongbang Valve Co.,Ltd.

Product Detail

Means of Transport: Ocean,Land

Packing: Export wooden packaging

Power: Manual

Pressure: Low Pressure

Material: Casting

Media: Water

Color: Optional

Production Capacity: 10000pieces/month

Delivery Date: 30days

Standard or Nonstandard: Standard

Structure: Check

Temperature of Media: Medium Temperature

Brand Name: HHV

Specifications

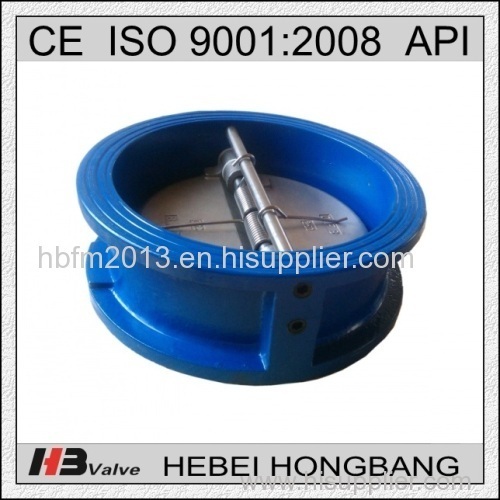

Cast iron dual plate wafer check valve:
1) DN40~DN800
2) PN2.5MPa
3)ISO9001:2008 CE
4)Factory built in 1997

Detail Specification:

Size	DN40-DN1200
End flange	ANSI B 16.1, EN 1092, AS 2129
Face to face	ANSI B 16.10
Top flange	ISO 5211
Normal pressure	DN40-DN600 PN1.0/1.6MPa (150/200PSI) DN700-DN1200 PN1.0MPa (150PSI)
Body	CI/DI/WCB/ALB/CF8/CF8M
Disc	DI/ALB/Rubber lined Disc / 1.2501/CF8M/1.4529/CF8/Hastelloy
Stem	416/304/316/431/17-4PH
Seat	NR/Hypalon/EPDM/Neoprene/NBR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White NBR/White EPDM/EPDM (NSF)/PTFE
Temprature	-45c~150c
Feature	Small in size, light in weight and easy maintenance, it can be used as a device to cut-off or regulate

Apply	Fresh water, sewage, sea water, air, vapor, food, medicine, oils. acids, alkalis, salt etc.
